NextGen-6

6KW Electric Boiler

Model # NextGen-6

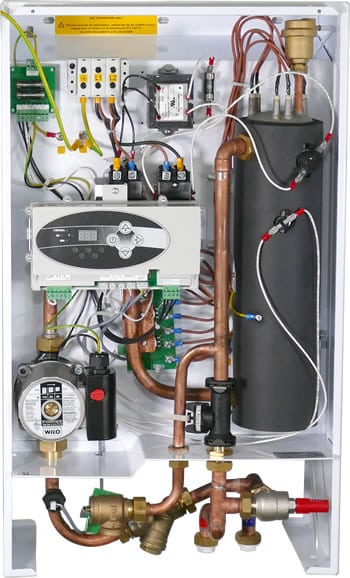

The NextGen Boiler is an electric boiler that allows for consistent, professional installation for radiant heating applications.  Take the complexity out of the mechanical room and replace it with peace of mind for the homeowner.  All boiler parts and pieces (expansion tank, circulating pump, air vent, safety relief valve, and heat exchanger) are housed within the unit, for an aesthetically pleasing appearance.

Downloads: Brochure

Click pins for more information

NEXTGEN 6KW ELECTRIC BOILER FEATURES AND BENEFITS

  • Boiler RatedPower: 6kW (20,478 BTU/Hour)
  • Voltage: 240V
  • Rated Current: 25.0A
  • Breaker Quantity – Amps: 1@40 amp
  • Number of Heating Elements: 3
  • Element Resistance: 28.8 alms ea
  • Operating Temperature Range: 85F -140F
  • Weight: 68.5lbs
  • Dimensions: 28″x17″x9-7/8″
  • One attractive plug-and-play system

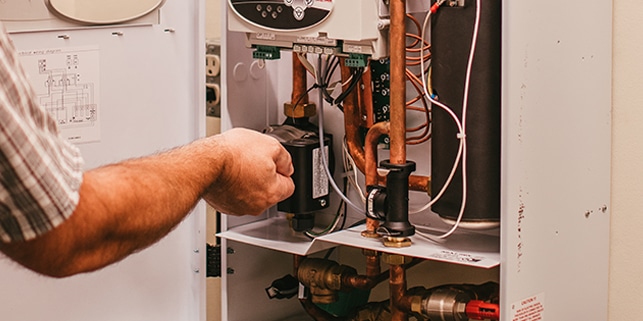

  • Installs in less than half the time
  • 2 Year Limited Warranty
  • UL Listed
  • Modulated three staged heating
  • Outdoor compensation/reset
  • Off-peak capability
  • Redundant safety controls
